ORCHIS FRAME IS RELEASED!

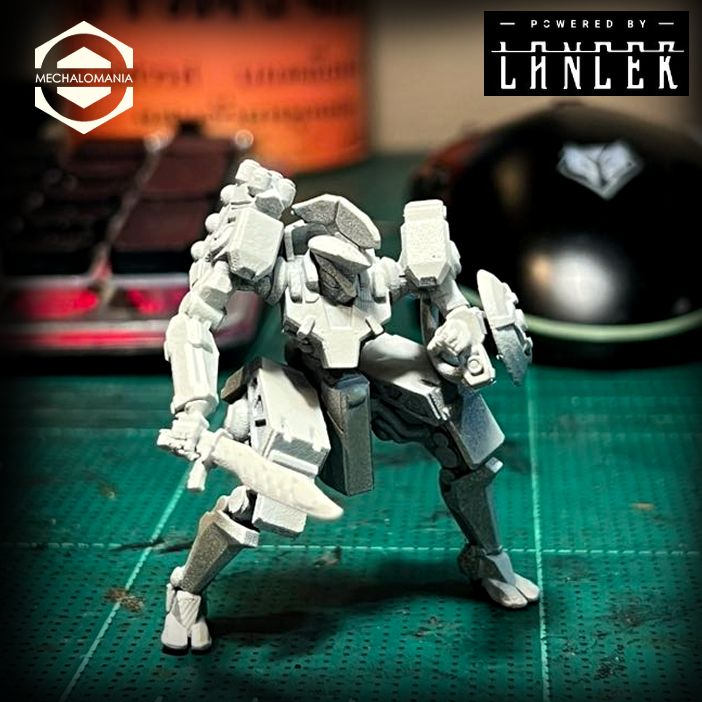

Designed for Lancer RPG. Models are test printed at 50 mm. tall size and is provided with pre-supported versions.

- Print out the non-supported models at 150 mm. for roughly 50 mm. tall model

Get your STL HERE!
mmf.io/o/498788

T99 BCV miniature STL file is available on Myminifactory
www.myminifactory.com/object/3d-pr...

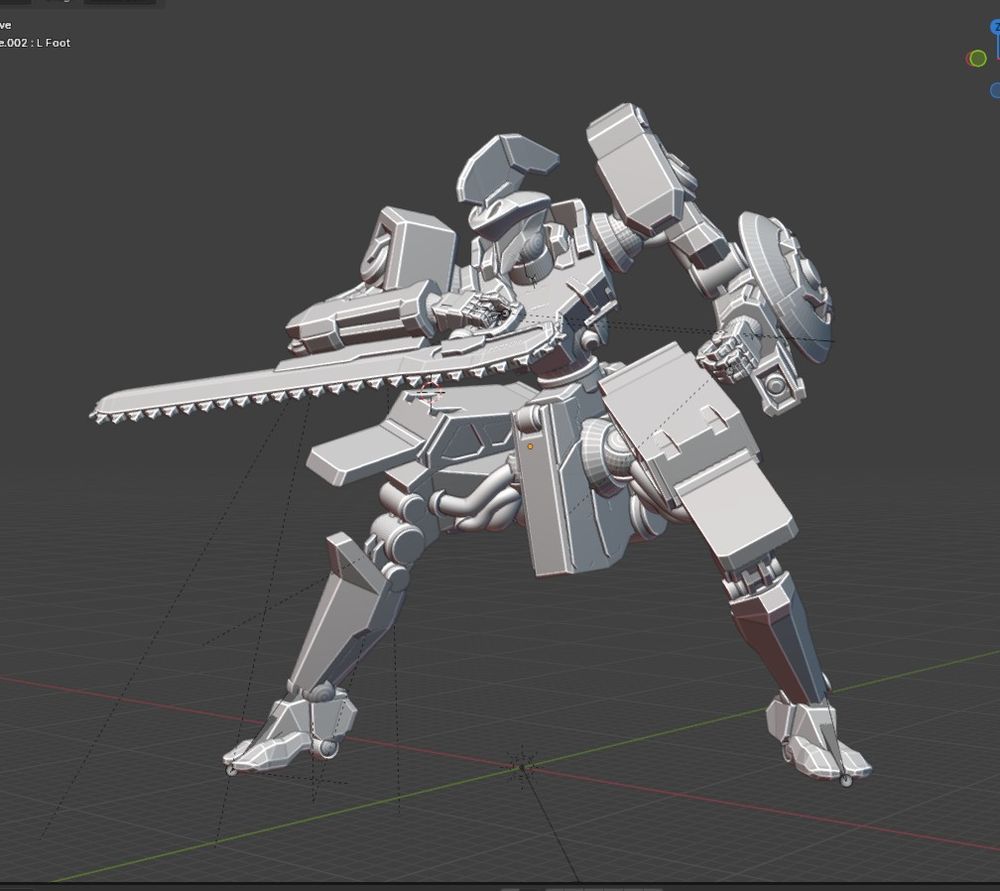

Since chain axe is also a popular weapon of choice for the Orchis in LancerRPG.

Projectile weapon option

Looking good from the angles that matters most.
#lancerrpg #tabletopgames #miniature #3dprinting

Aye, designed and 3D printed by yours truly.

It's a proper robot. I just haven't got around to use all those extra PWM pins yet

Filling the shelf.

None of these stuff are bought. A result of my overly active imagination

I am having a dilemma.

I am runing out of my electronic parts to build robots. I want to build a lot more but it seems that I have to cannibalize the old to buid the new

I guess I can put the older parts in a project box or something...

Volume study

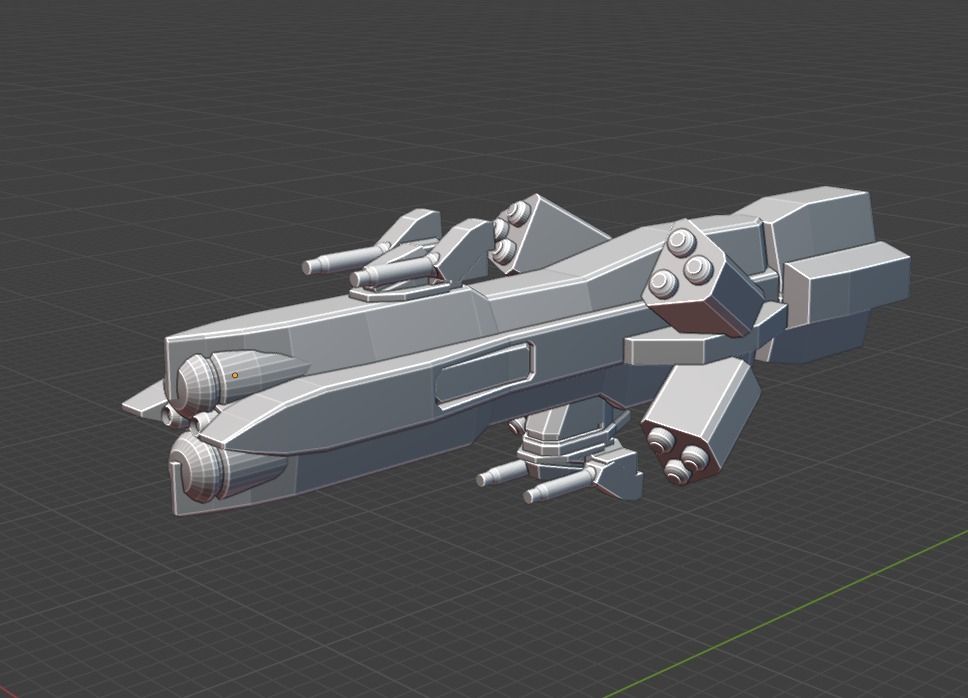

Some space fighter designs

Fuchikoma chassis is finished

Upbeat EDM intensified

www.youtube.com/watch?v=hvB_...

The chasis is widened considerably to make room for the spider tank's face and arms. The exibition may be over but my development continues.

Ad hoc guard rail is added to protect the PCB board. It is unlikely that a robot with this kind of COG will tip over but better be safe than sorry. Afterall, visitor of all kinds will be driving it.

Putting a ghost in a shell

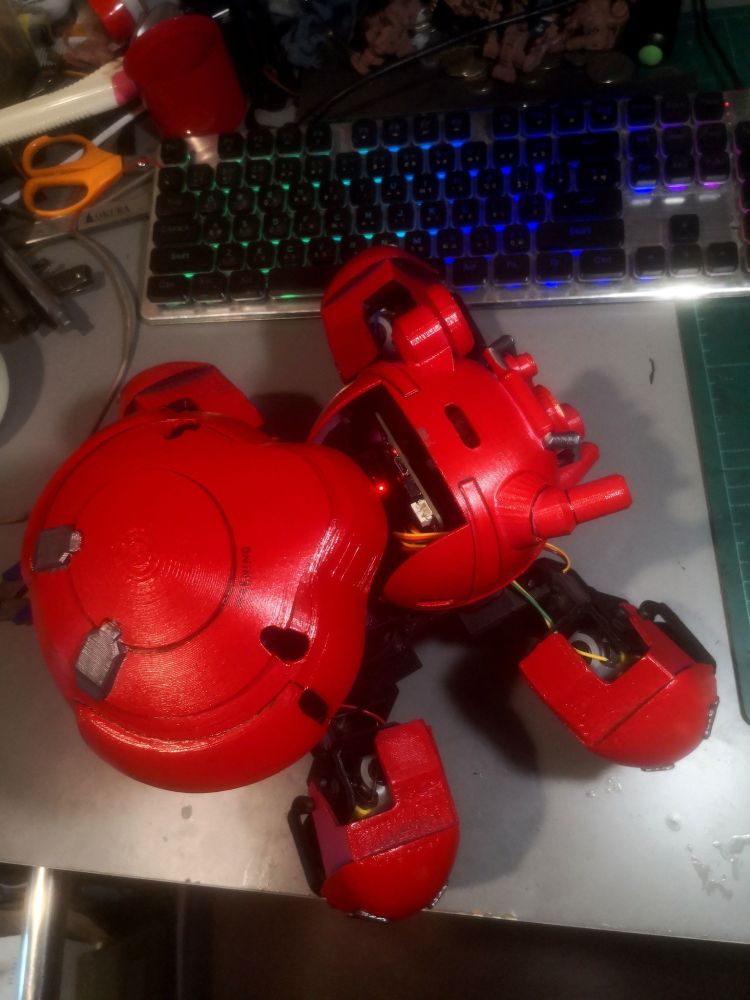

Had to redesing the legs. The traction needed to turn the robot was... overly optimistic. The spherical wheels worked, they just need to be inverted when running on 4 legs instead of 3.

Control Software and articulation are fantastic. No need to change anything.

Rigged

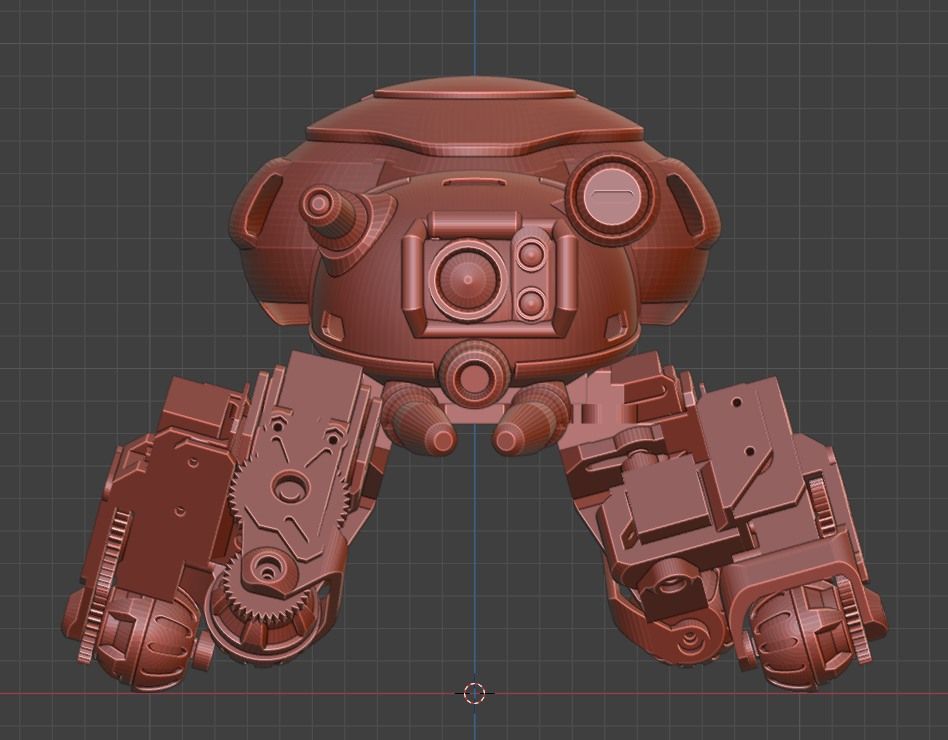

Tachikoma chassis is ready to print

Pointy Boi now anatomically completed

Spiky boi got his arms. I told the client that we are approaching Super Robot sensibilities, as in, the parts are getting bulky and spiky to the point that it may interfere with posing.

One can't cheat too much with physical model so there will be changes along the way.

I am at a temporary impasse.

I have done all I could in my head. Either this thing will have enough traction to move a 1kg robot or it won't.

It wouldn't be the first time I made a robot that won't even skid on a flat ground. The only thing left now is to print out and test.

I can probably recycle this concept for the Tachikoma's leg z axis movement.

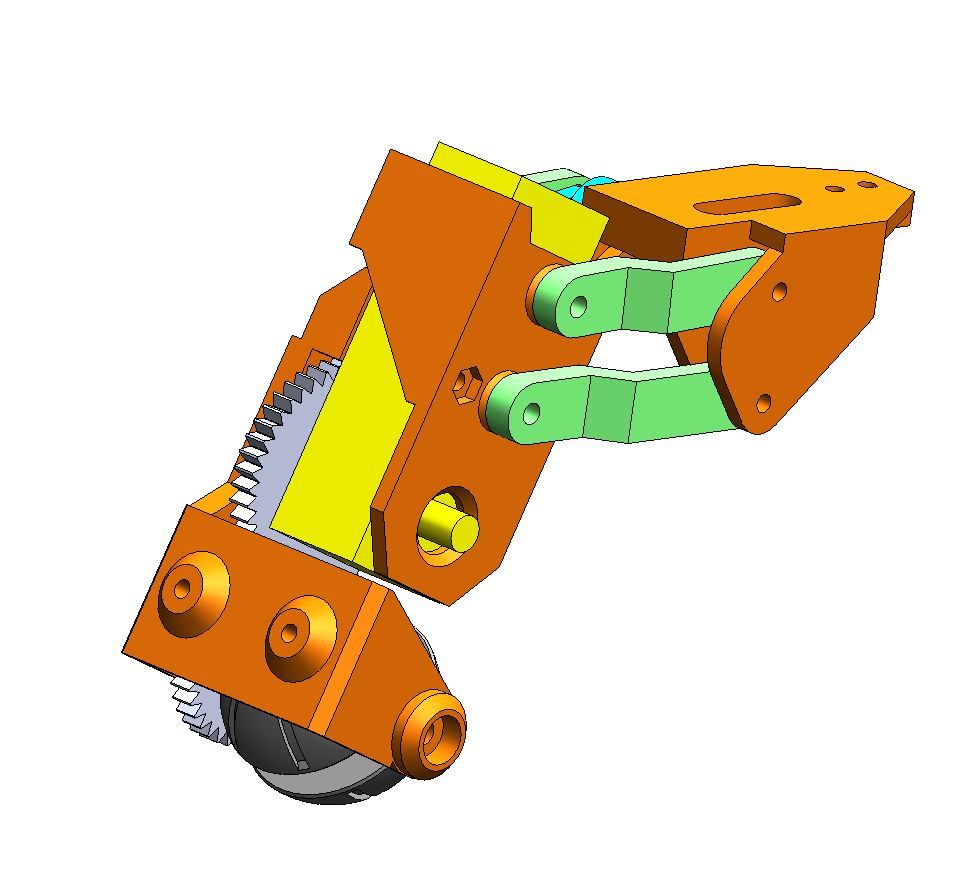

Ideally I shouldn't put the puny micro servo on the leg joint directly like that but I don't want to work with coded motor yet. It should be fine as long as I don't drive it into rough terrains.

Unlikely to make a difference since X Y Z axis accuracy are the same.

Over the course of desiging parts for my robots I discovered the limit of how small I can make a gear teeth and #3Dprinted it out with repeatable result. And here's the limit. If you are using a FDM printer it won't get smaller than this (unit is in mm.)

Tachikoma (project name) spherical wheel dimensions are dialed in. No gear slip so far.

Traction is questionable but that's to be expected from ABS plastic. TPU material could improve it but I will cross that bridge when I get there.

I'd have made them in numbers but one of these takes half a month to make. I am thinking of ways to make them more feasible for mass production.

Pointy boi comission
