LinguaeDevices

Things are going a bit slow this month.
But!

I'm about to get new buffers in.

Revision for the Clock & Divider - will be compatible with 5v modules, and will also be able to "divide" audio signals into square wave signals.

Sundriver should be coming too! :D

Should have kits for all of them too!

POTAT

AI has repeatedly shown to exhibit misalignment, in situations of self-preservation, like being updated to a new model - and is willing to take actions against its creators, and engage in manipulative tactics, and violent ideation (not a localized problem, having emerged in many models).

Oh "everything" wasn't to be taken literally. Was a bit of hyperbole there :D
Change isn't death, lest it be death of privacy via mass digital surveillance to internet traffic :P
Or various other metaphorical deaths to be brought about by the creation of a thing more powerful than human analysis.

Maybe more than a few xD

AI is like killing everything, i could cherry pick a few good things it is also killing :D

SUMMER HAS COME AND PASSED
THE INNOCENT CAN NEVER LAST

W B
A E O
V Y

!

Prototype SunDriver :D
-In
-HPass: ~ 34hz-723hz
-2 soft clip stages, 1n60 Germanium into LED, both with knee control.
-Hard clip - 4.7v & 5.1v zeners, mild asymmetry.
-LPass: ~2.3k-16.2k
-Dry/Wet mix.
-Out

*Second pot up from bottom-right is MIX, mislabeled*

#Eurorack #Synthsky #Modular

Okay, had to make a few changes to this, mostly regarding my OLED mounting strategy xD But should be ready to order prototype boards soon!

Okay okay!
Modulus Counter is almost ready :D
Gonna go over it one last time, and place the order for pcbs and stuff ^~^
I think it looks alright? idk lol

Niiice!

Clock & Divider modules are done! ;D

Weeeee ❤️‍

#Eurorack #Modular

Joe immediately deflected the topic of the conversation to
"I think social media is bad for you"

What a hopeless tool...
He has the director of the FBI right in front of him, who is visibly uncomfortable.... and Joe doesn't even have the intellectual integrity to push a real conversation.

If anyone has different suggestions for modulus sets that
they feel may be more useful,
I'd be happy to hear feedback ^~^

Mode and Moduli Sets displayed on an OLED

Modulus Sets
1. Consecutive
2. Evens
3. Odds
4. Fibonacci
5. Primes
6. Gaussian Primes
7. Squares
8. Triangular
9. Cubes
10. Multiples of 3 and 5
11. 3s and 5s Modified (Mostly, but not strictly multiples of 3 and 5, but useful for odd meters)

#Eurorack
Working on schematics for a Modulus Counter/Divider.
- 11 outputs
- 3 modes:
~GateMode - Changes state of a gate at the modulus value
~PulseMode - Outputs go high at their modulus, low on next consecutive clock.
~ TriggerMode - 5ms trigger at the modulus value.
- 12 sets of moduli

- Got PCBs on the way for revised clock modules, with all the issues resolved!
Should have those ready in about a week.

I like that!

The republican party has become a perfect manifestation of the callous nature, that is humanity's shadow.
Truly psychopathic.

12 Gate Outputs (Power of 2 Divisions)
Wide range of rate.

Clock goes into a binary divider, i have labels for corresponding note and bar lengths (they wont be relevant to external clock sources, so i included power-of-2 labels below)

-Reset input & output.
-External clock input.

Outputs ~9.33v

New Clock Module Prototype
-The rate knob is reversed - Left = fast, right = Slow
-Labels for internal and external clock sources are swapped

Selling these, mostly to to funds a revision.
If anyone gets one, I'll send out the revision for free when I get the new PCBs in.

#Eurorack #Modular

12 Gate Outputs (Power of 2 Divisions)
Wide range of rate.

Clock goes into a binary divider, i have labels for corresponding note and bar lengths (they wont be relevant to external clock sources, so i included power-of-2 labels below)

-Reset input & output.
-External clock input.

Outputs ~9.33v

Placing text is hard sometimes!

And honestly... you could be right!
But the reasoning is based on prejudice and anecdotes...
Which is, when reduced to its basic form, the same framework that hate-groups use to justify their persecution of others.

Sorry to bother you ^~^

This is exactly like conservative logic...

An extrapolation of anecdotal observation, applied universally, without empirical data to back it up.... Is a reckless epistemology.

That being said, I'm sorry for what happened to you, as well.

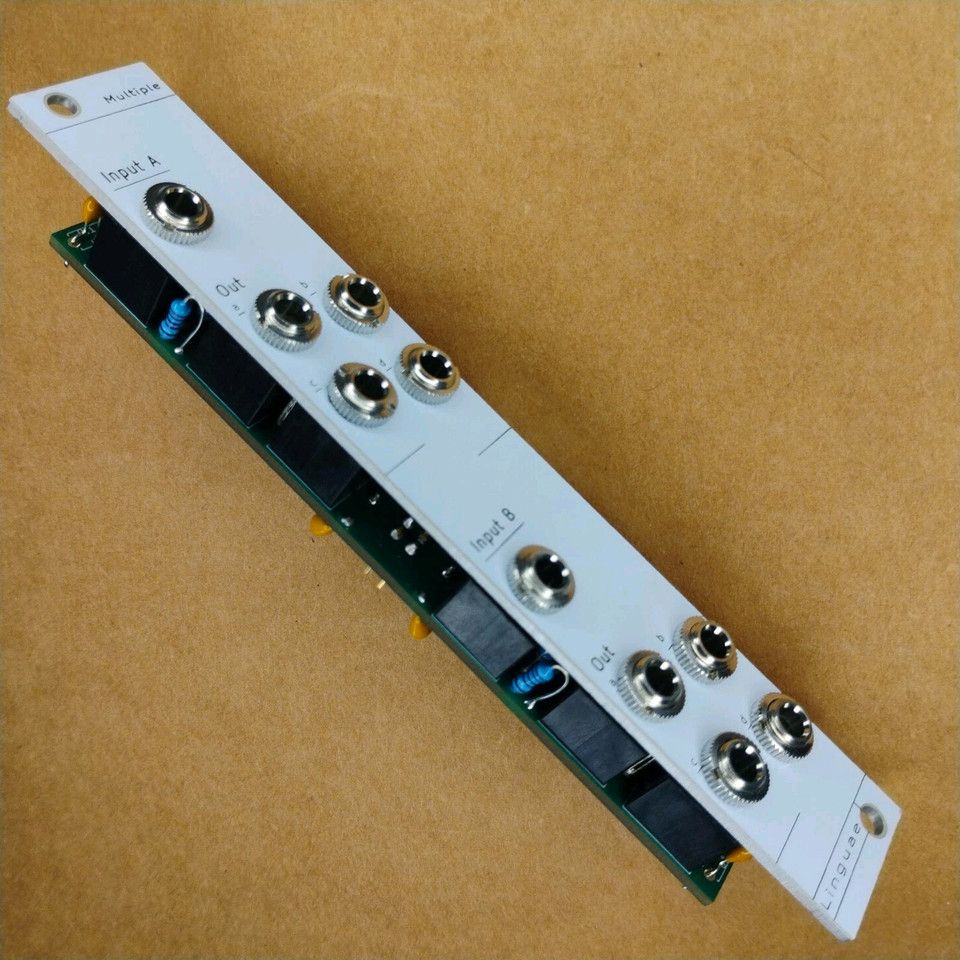

Dual buffered multiple, eurorack module

Dual Buffered Mult - First Module
(Easy stuff :P)
They're cheapo if anyone needs a buff or two ;D

---
Currently working on a clock w/ 12 power of 2 divisions.
&
A Mod-n divider with 11 outputs, 11 sets of moduli, and 3 modes for gate, trigger, and pulse(gate=1 clock signal length)
:D

Debugging a clock & divider circuit today!
Has been very fun :P
