Dave LeCompte (he/him)

beginning drawing the second black quad on the second draft

red and black quads complete, ready for the new blue SVG

missing blue quad from before now being drawn

I've built a greedy algorithm that tries (not very hard) to reduce the penup travel times by picking a next path starting point close to the last path ending point. This leads to hard to predict fill patterns.

Here you see two red quads and two blue quads. If you looked at the finished work, you know that there are intended to be three blue quads. If I wanted to lie to you, I could say that I'm going to draw the third quad next - but actually, this is an error, and I abandoned this print at about this point. My SVG generation generates one black, one blue, and one red SVG, and I had sent the third blue quad to a debug SVG which doesn't go to the plotter. I hadn't noticed this at generation time, only as the plotter had gone into action, so I reloaded the plotter, regenerated the blue SVG, and started over.

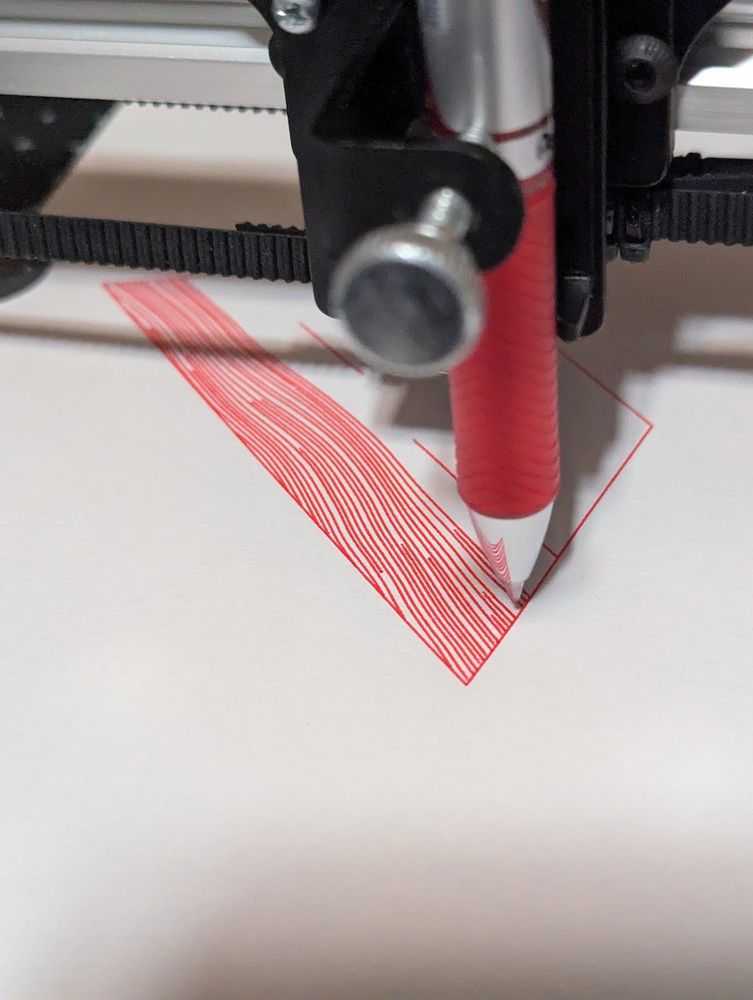

beginning to plot the first red quad

I generated full sized flow fields that I subsequently clipped to the polygons needed, so each of the blue polygons, each of the black polygons, and even each of the red polygons are unique.

For this one, I generated 7 different flow fields - the two red pieces shared a flow field, but each color had a different profile of "dispersion" or how wiggly it is, and blue and black had three different orientations. I could have just generated one tile's worth of flow field paths, but no.

a hexagon comprising 8 smaller half-hexagon quadrilaterals, in red, blue, and black ink. The quads are filled with flow fields, which look to me a little like wood grain. The red pieces are the smoothest, followed maybe by the blue, then by the black. I find it interesting that I can't tell for certain whether blue is wigglier than the black or vice versa.

Flow Field Half-Hexagon Quads

Still, largely experimenting with pen swaps and flow fields.

#iDraw #penplotter #flowfield #proceduralart

beginning to draw red squares, this time in red, this time mostly vertical

I believe that the red flow field has a little more wiggle, a little more angular variance than the black field, just for extra flavor

almost done filling in the red squares

then, when the black was finished, I took the black pen out of the plotter and inserted a red pen, drew a separate SVG for the red squares

pen plotter drawing an 8x8 grid of squares

pen plotter filling alternating squares with flow fields, approximately horizontal, using a black pen

two rows of black squares completed, starting on the third row

I plotted the black lines between the squares first, then the flowfields for the black squares

pen plotter drawing with flow fields alternately red-vertical and black-horizontal, forming a chessboard. The finished drawing is 8 inches square, each square being an inch on a side.

Flow Field Chessboard

I took my flow field code and generated two flow fields - one mostly horizontal, one mostly vertical, then clipped the resulting paths into individual squares. I collected the squares into two SVGs, plotted them with different pens
#idraw #flowfield #procedural #penplotter

I also filled the gaps on the outside of the 25 ring with circles tangent to pairs of 25-beads and the containing circle.

I finished it all off with what I call a "circle fractal", recursively tangential circles filling in the corner spaces of the square.

There were 9 gaps between the 9 beads, and only 4 of those gaps had been filled going "up" from 4, so I generated circles for all 9 gaps and checked for collisions with the 4 circles I had already generated, and adjusted the colliding circles.

Each ring is randomly rotated relative to each other, and to the square frame. This breaks up symmetries that would otherwise appear.

I then inserted more circles, nesting circles going "up" from the ring of 4 beads to the ring of 9, which gave 4 nested circles.

I started on the outside, with a square the size of the drawing space. I then nested 25 circles inside that, using sin(2pi/25) to find the spacing of the 25 "beads" - this gave me the radius of the ring of 25 beads, and how far to inset the next ring. I proceeded similarly with 16, 9, and 4 "beads".

pen plotter drawing of concentric circles, made up of 25, 16, 9, 4, and 1 "beads". The finished work has a vaguely astrological feel.

"circle fractal" of circles filling the space in the corner between the ring of 25 circles and the square. I started with the shapes of the left side and bottom side of the drawing, along with the outer circle, then found a circle tangent to all three shapes, which gave me three new roughly triangular regions which I could recursively fill. I proceeded until the circles had got down to 1/20 of an inch.

the beginnings of the ring of 25 beads being drawn

"Squared Circles" for 9/16/25
September 16 2025 was a "Pythagorean date", each element a square, the 2-digit year being the sum of the other two numbers. I nested a sequence of 4, 9, 16, 25 circles inside a square.
#idraw #penplotter #circles #pythagoras #procedural

I also added a greedy "travelling salesman" sorter that takes the paths as generated by the flow field code and attempts to reduce pen up travel time by reordering and reversing paths as necessary.

"River" flow field, drawn in blue gel pen, flow lines are largely coherent, mostly going from top left to bottom right of the image.

Beginning of drawing the flow field, individual strands are being drawn, some spatial coherence is visible.

Nearly finished drawing, a few gaps are visible

only a few gaps remain, resembling onion skin

New Flow Field

variation on a theme - constrained the flow field to a circle, constrained the vectors in the field between -35 and 75 degrees, for a more "river" flow visual.

#iDraw #penplotter #generativeart #proceduralart #flowfield

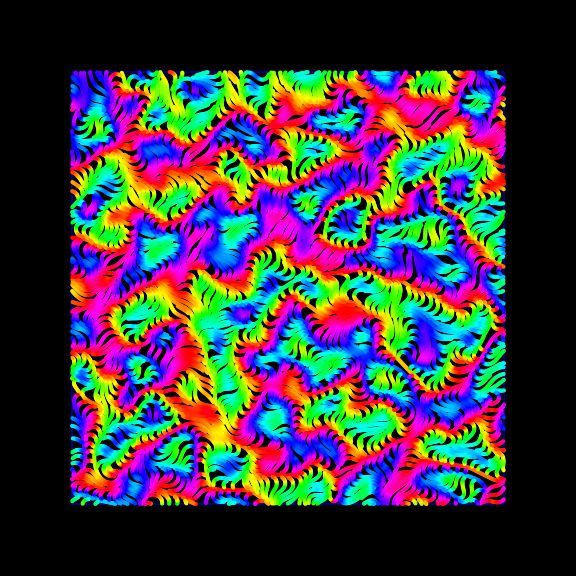

debug output, with heading of the flow field lines encoded to HSV.

I also experimented with outputting two SVGs as I implemented this - this is the "debug view", where I use color to indicate the heading of the paths, using a HSV colorspace.

I'm also experimenting with how high the pen should be in its "lifted" state - the iDraw uses a servo to press the pen into the paper. If you start the pen too low, you're putting unnecessary strain on the servo. For this drawing, the pen started at the thickness of two quarters stacked up. Seems OK

From each point, I trace out a path using simplex noise, stopping when I reach the edge of the draw area, or bump into a path, including the path I'm currently generating.

Since the seed points are generated flooding out from a single center point, the fine detail of the plot also fills out.

This work, like the rest of my works, are created in Python, generating a SVG file, which I feed to the plotter.

The Python script for this begins with a Bridson Blue Noise poisson disk point set.

Completed drawing, with space-filling curved blue lines following a "flow field", generated from simplex noise

Flow field drawing in process - the early drawing has some "tendrils" reaching out to the edge of the draw area, but most of the detail is within a circle - this is a result of the algorithm that generated the "seeds" that lead to the paths, which starts at a point and spirals out.

Beginning of the drawing - some long tendrils are visible and many arching short paths connecting some of the tendrils, resembling contour lines from a mountainous region

Flow Field drawing

Flow field, where the direction of the flow comes from simplex noise. Plotted using blue EnerGel gel pen with an iDraw H SE plotter.

#iDraw #PenPlotter #ProceduralArt #GenerativeArt

A poster with the words MATH JAM in large letters, and small numbers and letters filling the rest of the poster, drawn in blue ink.

A poster for "Math Jam", a get together of recreational math folks mathsjam.com

using Hershey fonts, bridson blue noise, and line segment SDFs.

#iDraw #penplotter #math #mathjam #mathsjam

a pen plotter drawing of a rectangle around a hexagon around a bunch of small circles, around a pair of medium sized circles, filled with a set of parallel lines. There's some extraneous lines in the upper right hand side that I need to sort out, I think my plotting bed is not quite level.

#iDraw #penplotter #proceduralart
an exercise in clipping shapes (circles) against other shapes (circles, half-planes) specified as SDFs.

Reminds me a little of a guitar or a fried egg.

apollonian gasket of 13 circles inside a larger circle

close up of recursive tangent circle chains

circle inversion of the outer gasket

Drawing an Apollonian Gasket with a circle inversion on an UUNA Tek iDraw H A3 pen plotter

#penplotter
