Plugger Lockett

A waterfall of the ESCAPADE-Gold telemetry signal. It shows that there are significant changes in power over time. There is a gap caused by a problem with the recording. The signal resumes at a slower data rate after the gap.

New blog post: Decoding ESCAPADE. Here I decode a recording of the ESCAPADE spacecraft that I did with an Allen Telescope Array antenna the day after they were launched. The modulation is PCM/PSK/PM with rate=1/2 Turbo code. The telemetry uses CCSDS TM frames and Space Packets.

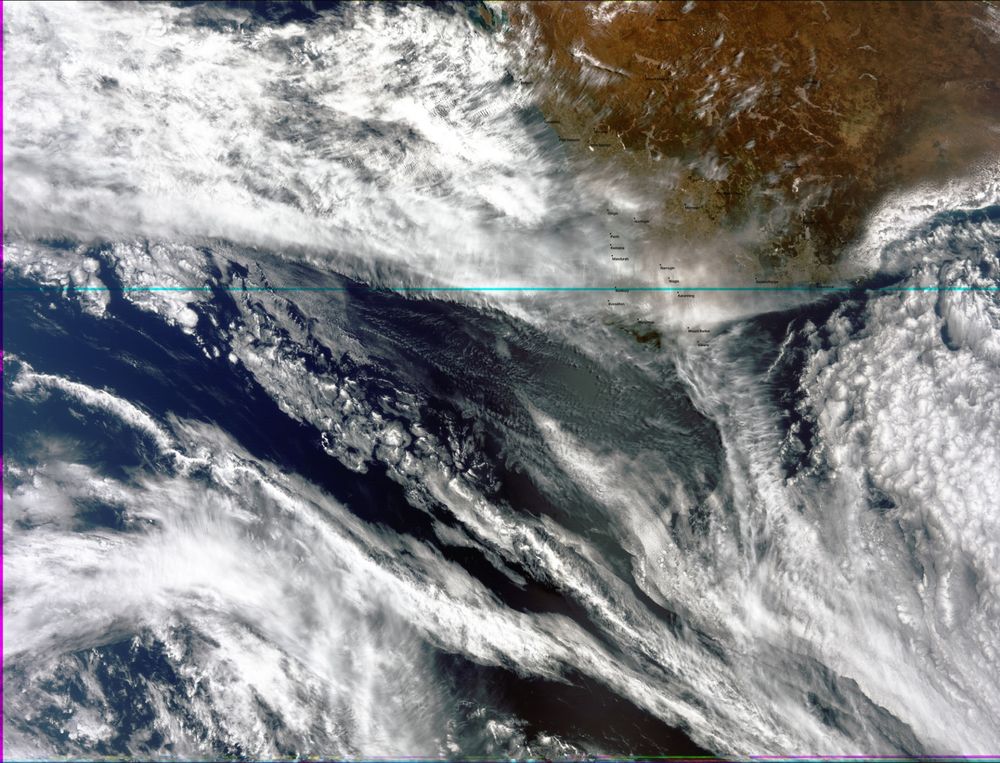

NOAA 21 from this afternoon.
#satdump

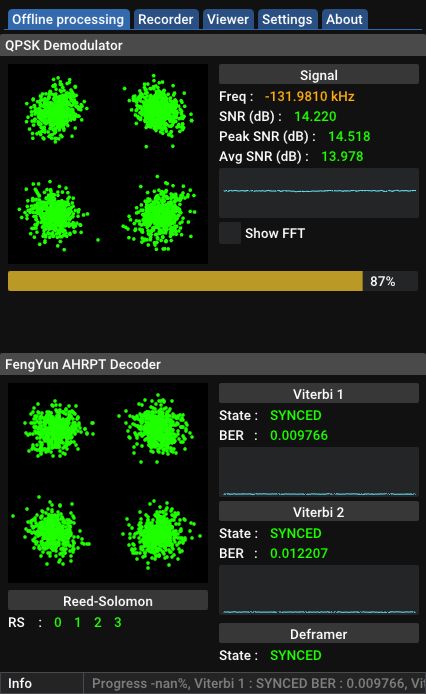

FY-3F from this morning.
#satdump

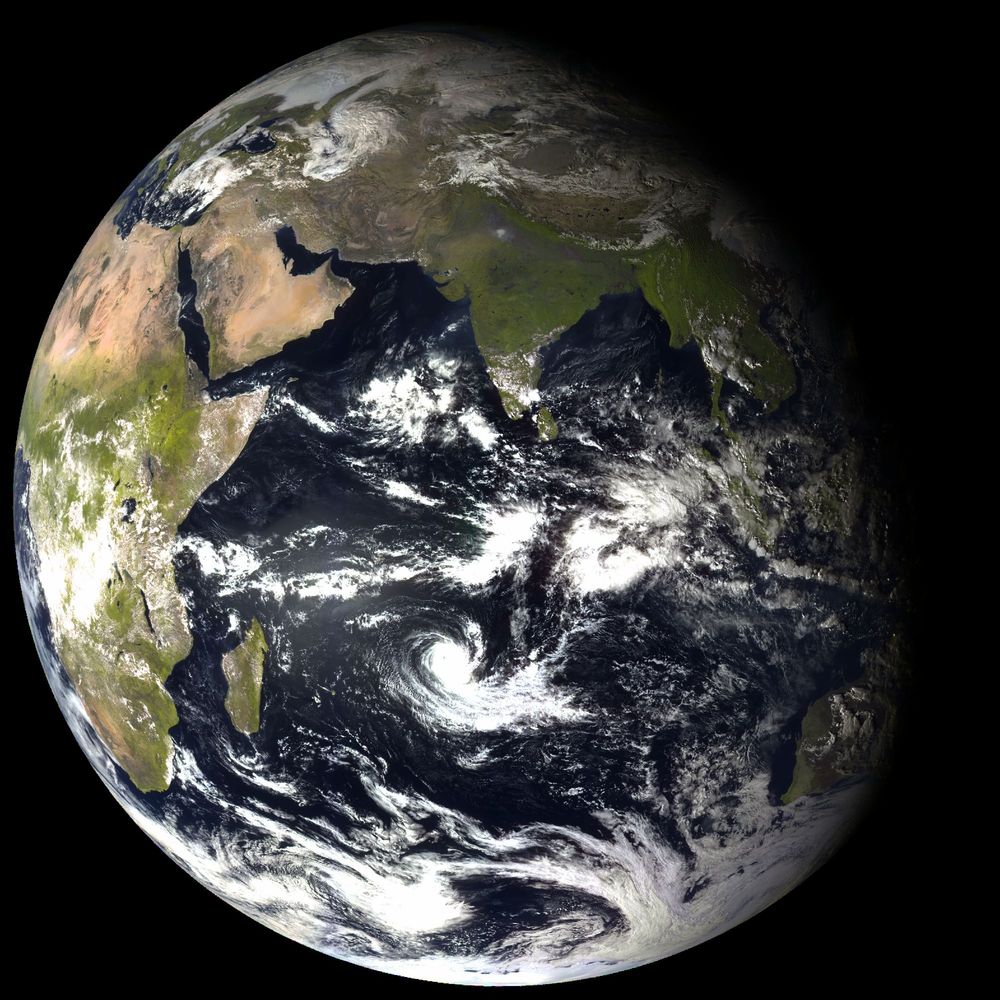

And here's some Elektro L3 LRIT Natural Color composites from today.
#satdump

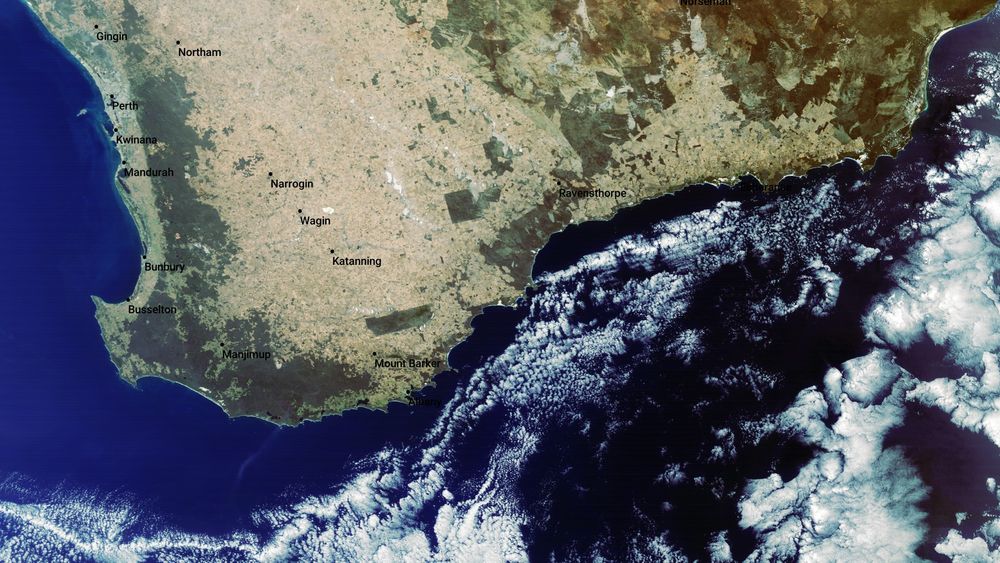

FY-3D True Color Crop from this afternoon.
#satdump

Yea, or don't turn it on near airports I guess

Antenna port needs better protection · Issue #541 · greatscottgadgets/hackrf Steps to reproduce Expose the antenna to nearby 17kW airport radar (under 2km distance) while in receive mode Discover that the MMIC input amplifier is fried and receive sensitivity is greatly redu...

This explains it
github.com/greatscottga...

Gosh, I hope you ordered one of the Aliexpress Clifford HackRFs!

HackRF does have bias-t, but it won't power a Sawbird+ for instance.
Saveitforparts did test his discovery dish s band feed with his HackRF and it seemed to power it fine though.

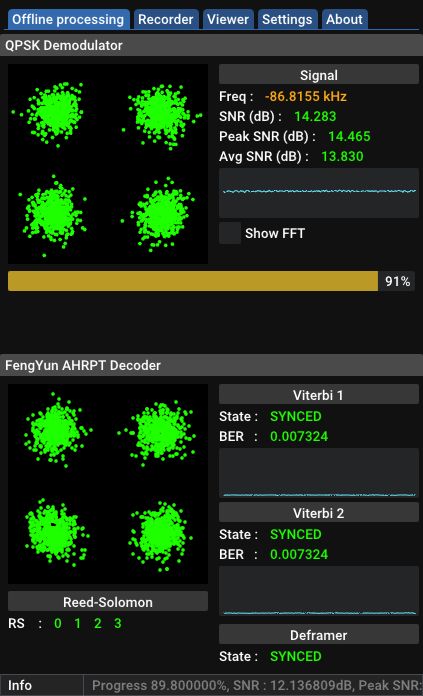

FY-3D from this afternoon
#satdump

FY-3F from less than an hour ago.
True color composite
#satdump

Fengyun-3D from this afternoon.
#satdump

Fengyun-3F from this morning, 45° peak elevation eastern pass.
#satdump

FY-3F true color composite image from this morning
74° peak elevation western pass
#satdump

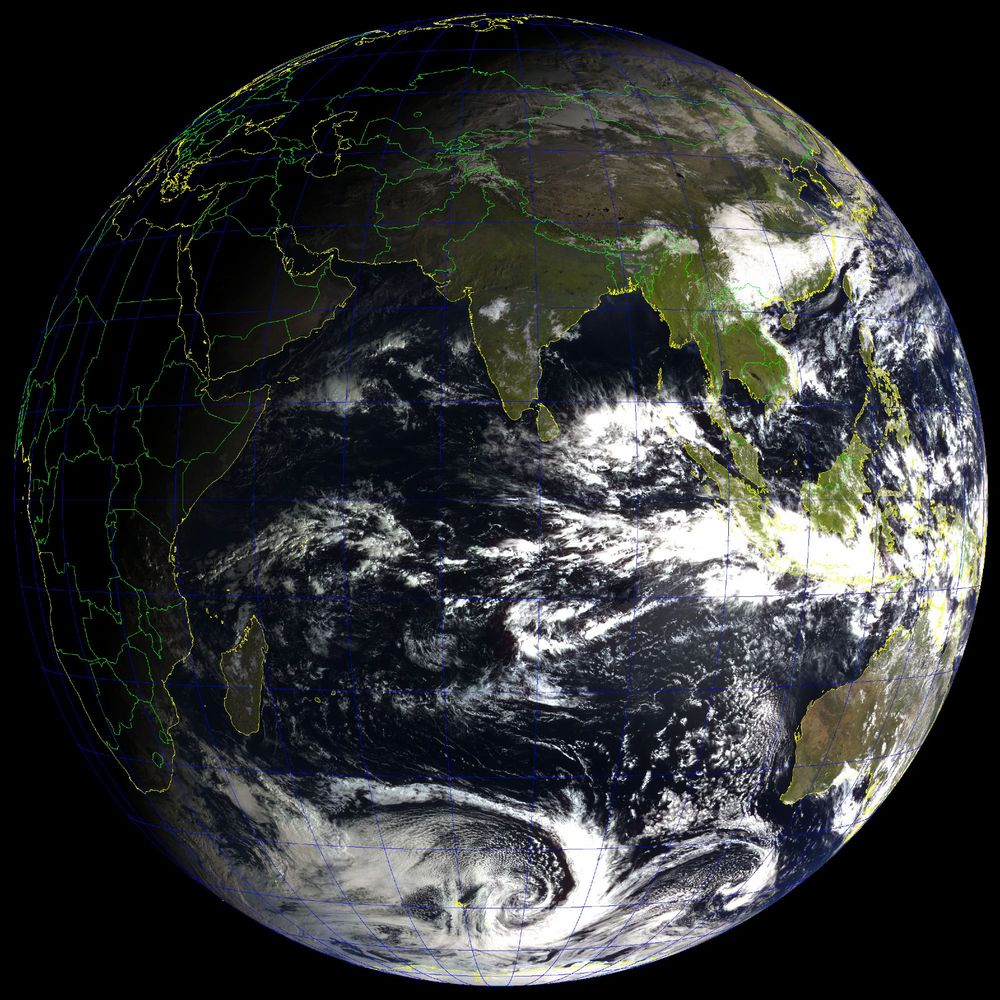

Here are some Elektro-L3 LRIT images from yesterday.
#satdump

This afternoon's Fengyun-3D pass.
True Color.
#satdump

Metop C pass from this morning.
I went portable to get this, just down the road to a park.
Small line/signal drop was when I went to move the laptop and the wind caught the dish! 😅
#satdump

NOAA 21 from this afternoon
True Color Composite (ieq)

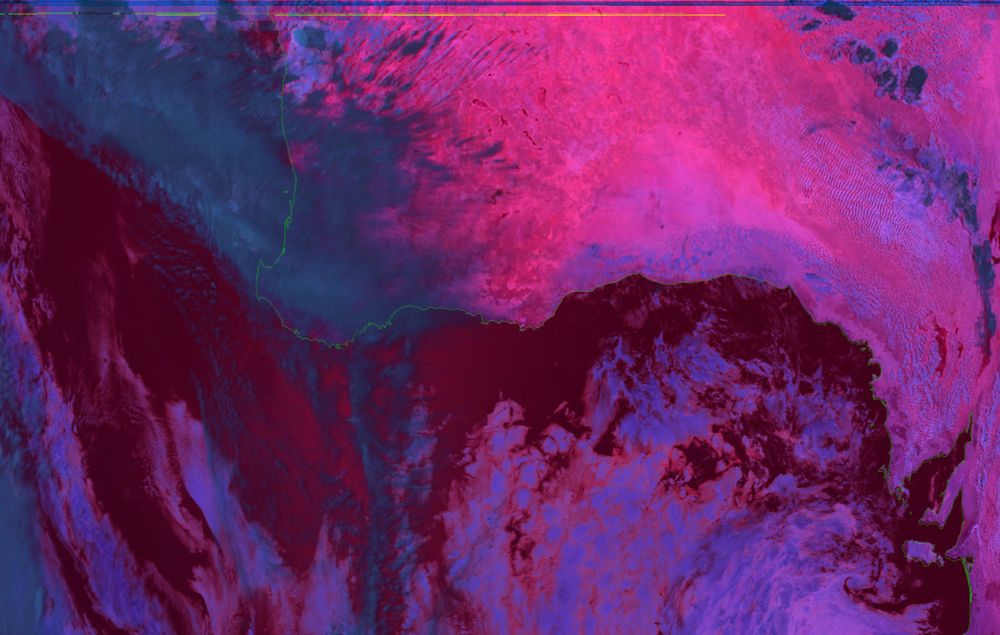

221 False Color Composite (eq)

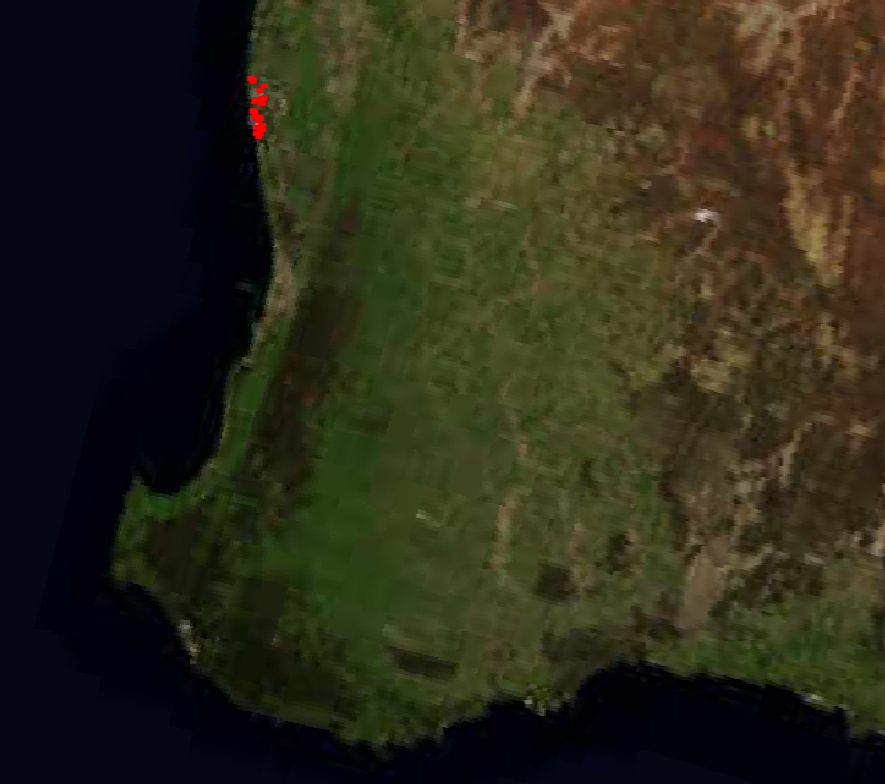

Fire Temperature RGB composite
Interestingly the fire is still raging up north, but I can't see it on the Fire Temp compo.
#satdump

X band mate! 1.2m offset dish

Fengyun-3F from this morning.
True Color composite screenshot.
#satdump

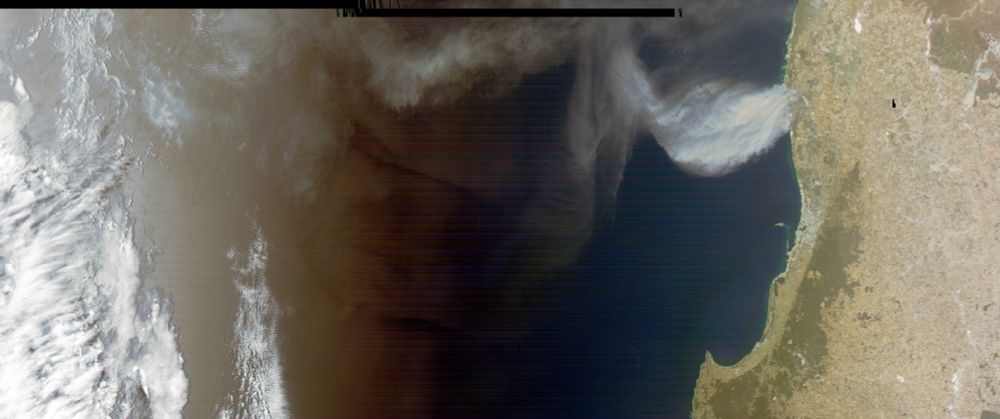

Just got a good western pass of Aqua. The fire up north is, uh, quite big.
A huge thanks to Julia from the SatDump dev team for all of her work on the fire detection composites, looks like it's pretty spot on!

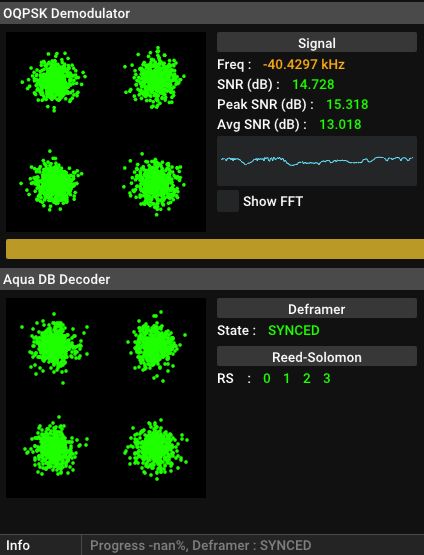

Images are True Color composites (ieq), Fire Detection, and #SatDump demod stats.

We did alright today.

a man in a suit and tie with his arms in the air and the words it 's happening ALT: a man in a suit and tie with his arms in the air and the words it 's happening

My current state 😀

In related news, user uploaded gifs still don't work.
Hey KFD!!!

@kentuckyfrieddata.bsky.social

Here's some Elektro-L3 LRIT Natural Color composites from yesterday.
#satdump

Amateur hypersonics.

Thank you for confirming!

huh, the gif renders fine in when writing the post.
not sure why it's not playing in the post.

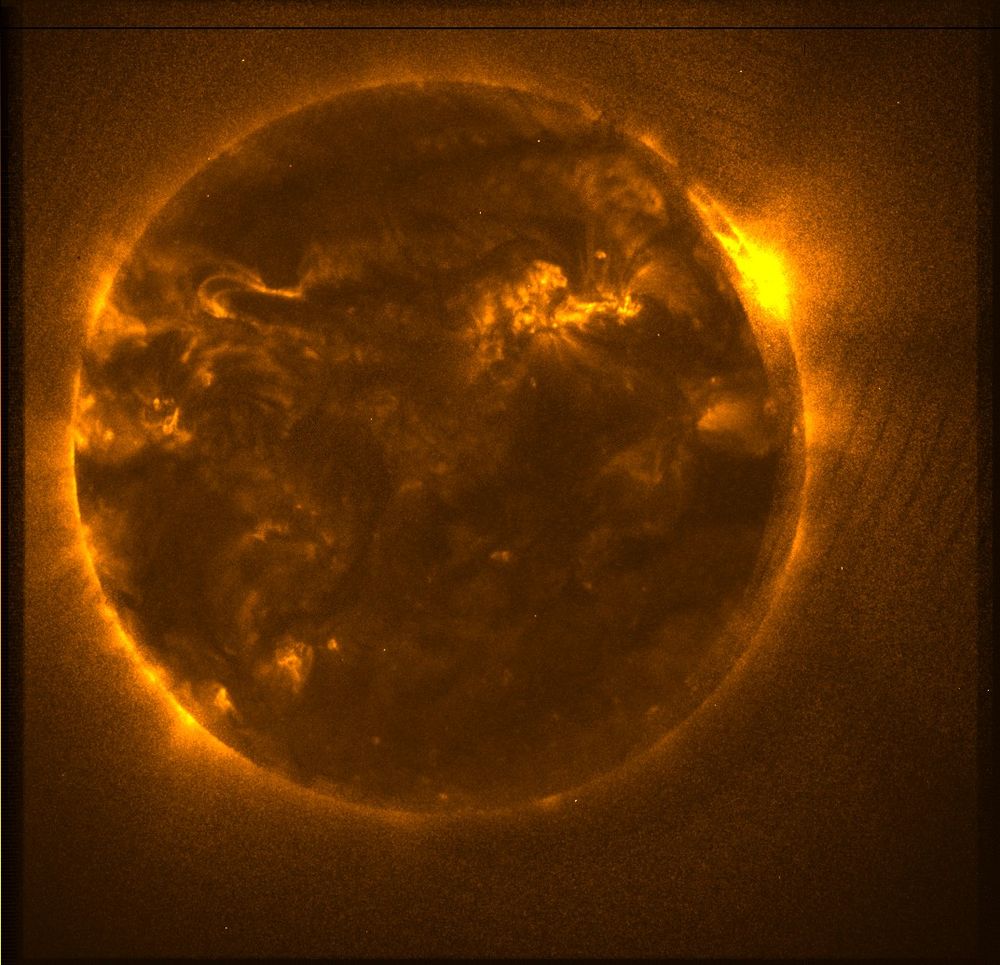

FY-3E XEUVI gif from an early evening pass today.
Images were processed with mogrify and then convert was used to make the gif.
Many thanks to @lego11.bsky.social for the commands!
#satdump
